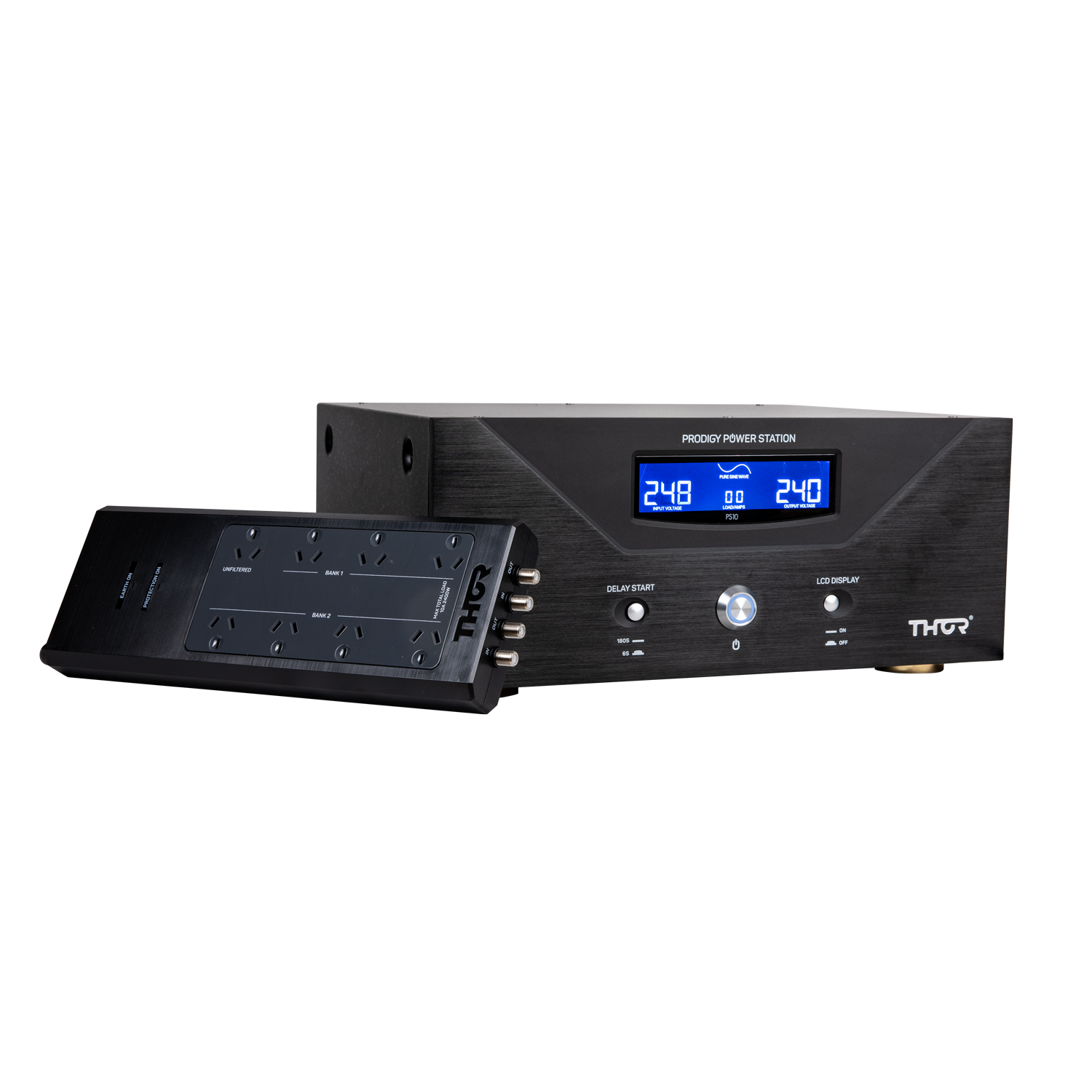

PS10P Prodigy

10A Pure Sine Wave Prodigy Power Station

  • PURE SINE WAVE OUTPUT PURE SINE WAVE OUTPUT
  • UNDER AND OVER VOLTAGE STABILISATION UNDER AND OVER VOLTAGE STABILISATION
  • 8 PROTECTED OUTLETS 8 PROTECTED OUTLETS
  • 2 ISOLATED FILTER BANKS 2 ISOLATED FILTER BANKS
  • ANTENNA PROTECTION ANTENNA PROTECTION
  • RJ45 NETWORK PROTECTION RJ45 NETWORK PROTECTION
  • 4 LARGE PLUG ADAPTORS 4 LARGE PLUG ADAPTORS
  • ALARM BUZZER <span>DETECTS IF SURGE CIRCUIT IS DAMAGED</span> ALARM BUZZER DETECTS IF SURGE CIRCUIT IS DAMAGED
  • 1.8M CABLE 1.8M CABLE
  • FIRE RETARDENT FIRE RETARDENT
  • 6 YEAR REPLACEMENT WARRANTY 6 YEAR REPLACEMENT WARRANTY

$2,499.95

Exclusive to

Prodigy-PS10-7Prodigy-PS10-10 rearProdigy-PS10-IEC cord and board RJ45 angledProdigy-PS10-mache insert completeProdigy-PS10-8ps10-display-with-240v-output-setting-web1ps10-high-voltage-display
Categories: , , , Tag:
Technical Smarts     Product Brochure

Related products

Similar Products

PS10P Prodigy

Compare

ULTIMATE REGENERATIVE POWER PROTECTION AND FILTRATION

Now including the PRODIGY 8 with new patented non-sacrificial technology, the most comprehensive and advanced solution to protect your electronic equipment.

sb-smartprotect6

Input Voltage Display

Output Current Display

Output Voltage Display

Working Normal Display

Delay Start Switch

Power Switch

Display On/Off Switch

Reset Circuit Breaker

P8 Board Input

User Selectable Output Setting (240V or 220V)

External Earth Connection

More videos available here

PROTECTS

  • ALL SCREEN TECHNOLOGY ALL SCREEN TECHNOLOGY
  • TOP END HIFI AND AUDIO TOP END HIFI AND AUDIO
  • COMPUTERS AND AV SERVERS COMPUTERS AND AV SERVERS
  • ANY DEVICE THAT PERFORMS BETTER WITH PURE POWER 24/7 ANY DEVICE THAT PERFORMS BETTER WITH PURE POWER 24/7

Technical Smarts

  • Product Dimensions: 436mm (W) x 195mm (H) x 380mm (D)
  • Supply Voltage: 240/Vac 50Hz
  • Maximum Current Rating: 10amps/2400 W (Va)
  • Wave Form: Pure Sine Wave
  • Operating Voltage: 180v - 260v
  • Incoming Voltage out of designed range (i.e. 180v - 260v): if input was 270v then output would be approx 250v to 255v
  • Incoming Voltage out of designed range (i.e. 180v - 260v): if input voltage was 140v then output would be approx 230v - 235v
  • Safety Approval No: RCM 5287
  • Model No: PS10P
  • Double Filtration and Protection Management: Prodigy P8 Board included

inside the brain

Inside the Prodigy

  • Unlike current traditional surge protection technology Thor’s Patented circuit is not sacrificial. It uses a regeneration process to absorb spikes and surges then resets itself ready to protect over and over again. To use an analogy, think of a shock absorber. A shock absorber is designed for absorbing the energy of sudden impulses or shocks in machinery or structures and once that energy has been absorbed, it resets back to its default state. Our Patented Non-Sacrificial Technology does the same except working against dangerous spikes and surges in power.
